Propose grasps via segmentation

The skill segment_and_propose_grasps proposes top N grasp poses, but does not execute the grasps.

The segment_and_propose_grasps skill performs model-free grasping by segmenting a point cloud into graspable surfaces and proposing suction grasp poses. Unlike traditional grasping skills that require object meshes or trained perception models, this skill works directly with raw point cloud data to handle unknown objects in cluttered or non-cluttered scenes.

Skill workflow​

The skill performs three main steps:

  1. Segmentation: Divides the point cloud into smooth surface regions.

  2. Plane fitting: Fits one plane to each segmented region.

  3. Grasp selection: Scores and selects the best grasp poses.

Usage example​

  1. Add the skills needed to acquire a point cloud, e.g. the estimate_point_cloud skill. Refer to https://flowstate.intrinsic.ai/docs/skill_guides/perception/estimate_point_cloud for more information on how to set up estimate_point_cloud.

  2. Add the skill segment_and_propose_grasps.

  3. Connect the required point_cloud input with the output of estimate_point_cloud.

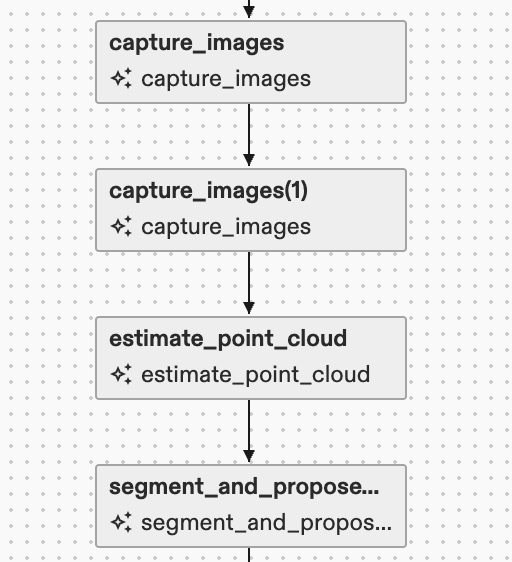

Set up the behavior tree

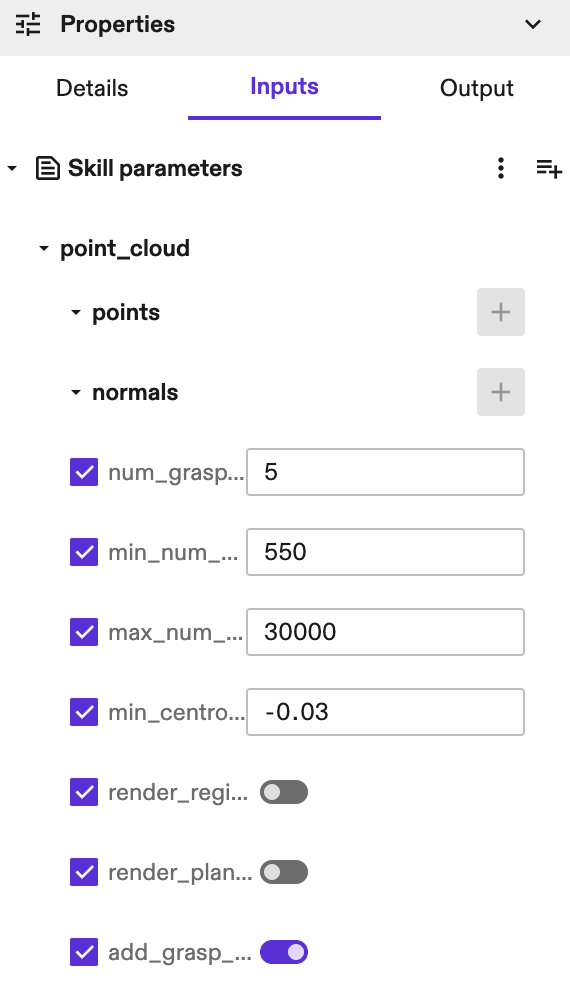

  1. Configure parameters based on your scene. The following is an example.

Set params

  1. Use visualizations to tune parameters and verify segmentation quality. Refer to the Parameter tuning guide section below for more information.

  2. Execute the skill and use the output grasp poses with execution skills like move_robot, control_suction_gripper, etc..

Parameter tuning guide​

Proper parameter tuning is crucial for good performance. Follow the following 3-step tuning process.

Step 1: Segmentation tuning​

Goal: Achieve proper segmentation where each smooth surface is one region, with no over-segmentation (breaking one surface into multiple regions) or under-segmentation (merging separate surfaces).

Visualization: Set render_regions_in_world=True to see segmentation results.

Parameters to tune:

normal_estimation_radius (default: 0.0035m)

Too small: Normals become noisy → over-segmentation

Too large: Normals oversmoothed → under-segmentation

Tuning: Start with default, increase if over-segmented, decrease if under-segmented

smoothness_threshold_radians (default: 0.035)

Too small: Over-segmentation (strict merging)

Too large: Under-segmentation (loose merging)

Tuning: Increase if surfaces are broken up, decrease if separate surfaces merge

curvature_threshold (default: 0.8)

Too small: Over-segmentation (splits at small curvature changes)

Too large: Under-segmentation (ignores important curvature boundaries)

Tuning: Decrease if missing important edges, increase if splitting smooth surfaces

number_of_neighbours (default: 20)

Too small: Unstable region growing

Too large: Slower computation

Tuning: Adjust if region boundaries are inconsistent

Step 2: Plane fitting tuning​

Goal: Ensure each segmented region is properly fitted with a plane.

Visualization: Set render_planes_in_world=True to see plane fitting results.

Parameters to tune:

distance_threshold (default: 0.005m)

Too small: May miss valid plane points

Too large: May include outlier points

Tuning: Increase if planes are incomplete, decrease if planes include outliers

Step 3: Grasp selection tuning​

Goal: Select the most reliable grasp poses.

Visualization: Set add_grasp_pose_frames_in_world=True to see proposed grasps.

Parameters to tune:

min_num_points (default: 100)

Too small: May include noise planes

Too large: May miss small valid planes

Tuning: Decrease if missing small objects, increase if getting noisy planes

max_num_points (default: 5000)

Too small: May miss large valid planes

Too large: May include environment surfaces

Tuning: Increase if missing large objects, decrease if including table/background

min_centroid_height

Filters grasps below this height

Tuning: Set to just above your table/worksurface height

z_offset_in_meters

Adjusts grasp depth

Tuning: Positive values move grasp deeper into object

Troubleshooting​

Problem: Over-segmentation (too many small regions)

Solution: Increase normal_estimation_radius, increase smoothness_threshold_radians, or decrease curvature_threshold

Problem: Under-segmentation (merged surfaces)

Solution: Decrease normal_estimation_radius, decrease smoothness_threshold_radians, or increase curvature_threshold

Problem: Missing small objects

Solution: Decrease min_region_size and min_num_points

Problem: Including environment/table

Solution: Set appropriate min_centroid_height, decrease max_num_points

Problem: Long runtime

Solution: Increase normal_estimation_radius, increase min_region_size

Best practices​

  1. Start with default parameters.

  2. First tune segmentation (Step 1) using region visualization.

  3. Then tune plane fitting (Step 2) using plane visualization.

  4. Finally adjust grasp selection (Step 3).

  5. For complex scenes, begin tuning with simpler, uncluttered scenes.
